Machine Video

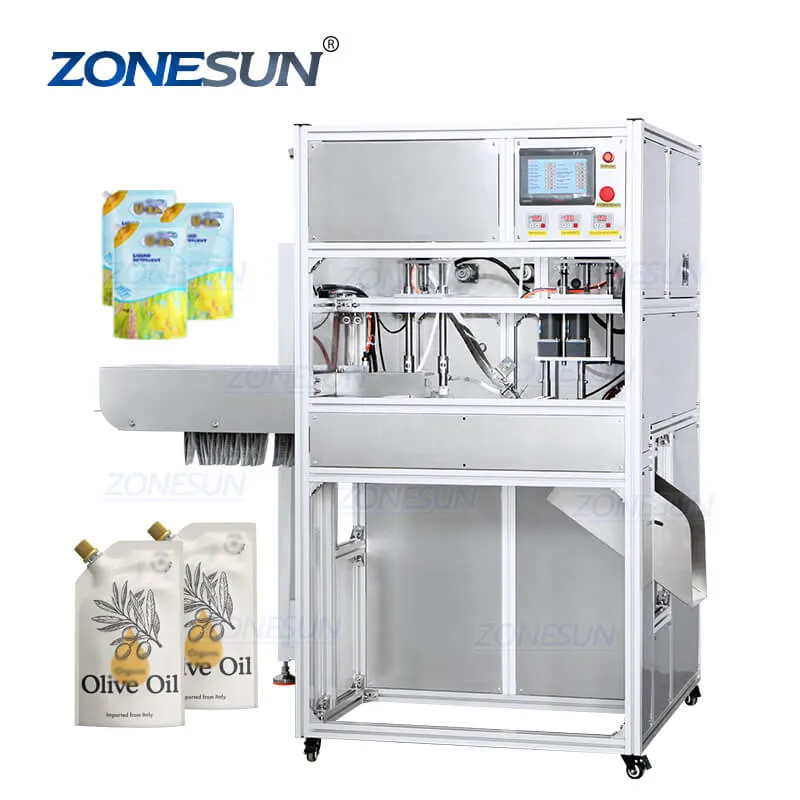

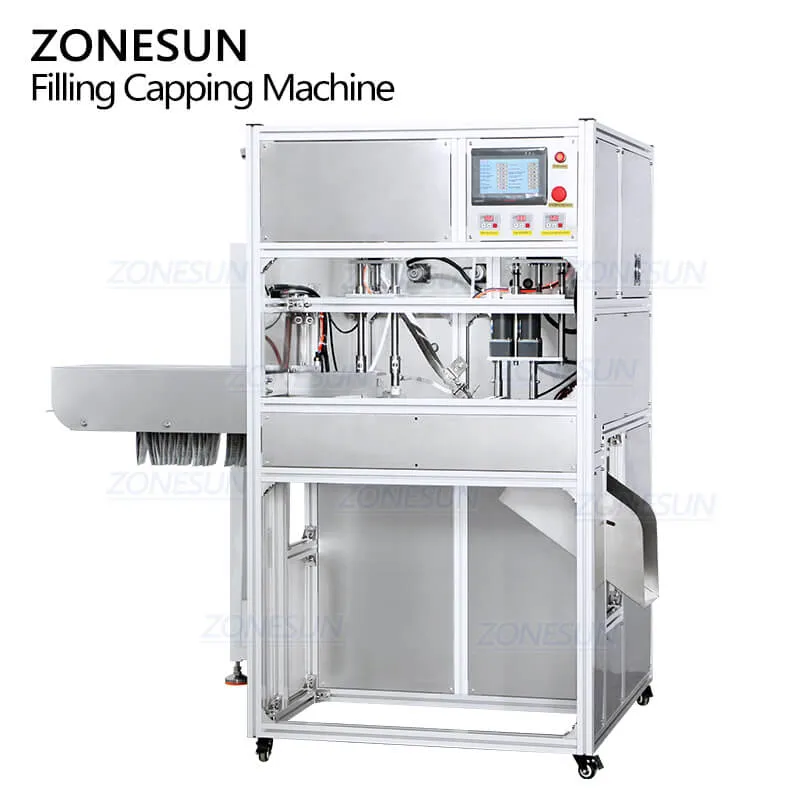

This filling capping machine is designed for filling liquid into spout pouch bag like laundry detergent, essence,juice.It is equipped with piston pump,different filling range can be chosen as need.It is widely used in food,daily chemical industries.
Parameter
- Machine Model:ZS-ASP2
- Voltage:220V/110V 50-60Hz
- Power:About 1kW
- Production Speed:About 800-1200pcs/h
- (depending on filling materials and pouch size)
- Filling Pump:316 Stainless Steel Magnetic Pump(Can be customized according to production need)
- Max Flow Rate:3.5L/min(based on water)
- Suitable Cap Size:Can be customized
- Air Pressure:0.6-0.7MPa
- Package Size:About 1820*1210*1900mm
- Package Weight:About 360kg

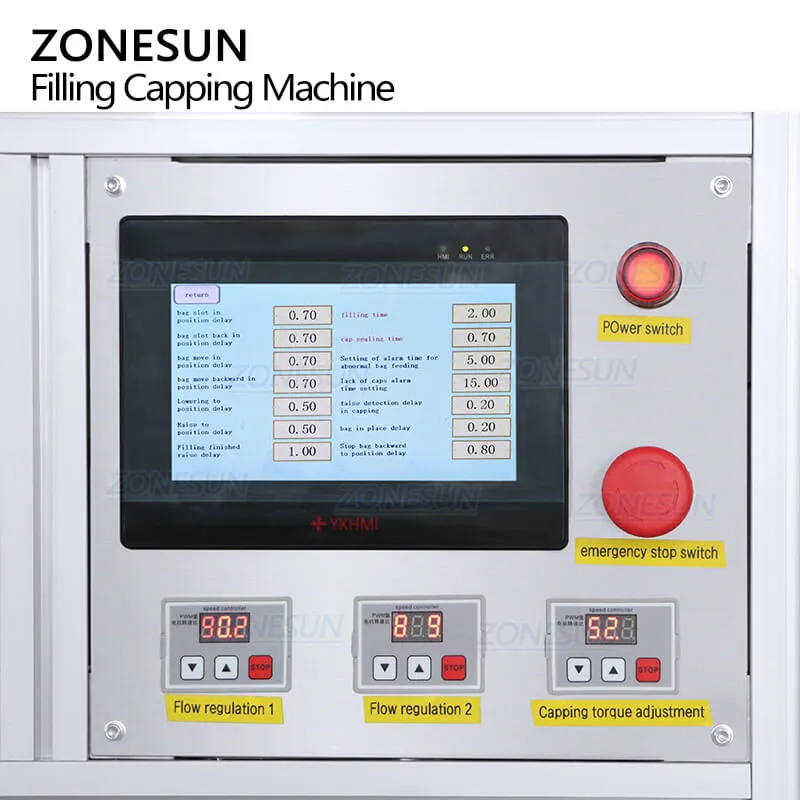

Equipped with PLC operation panel, it is easy to set and adjust working parameters. The language of panel can be customized as your need.

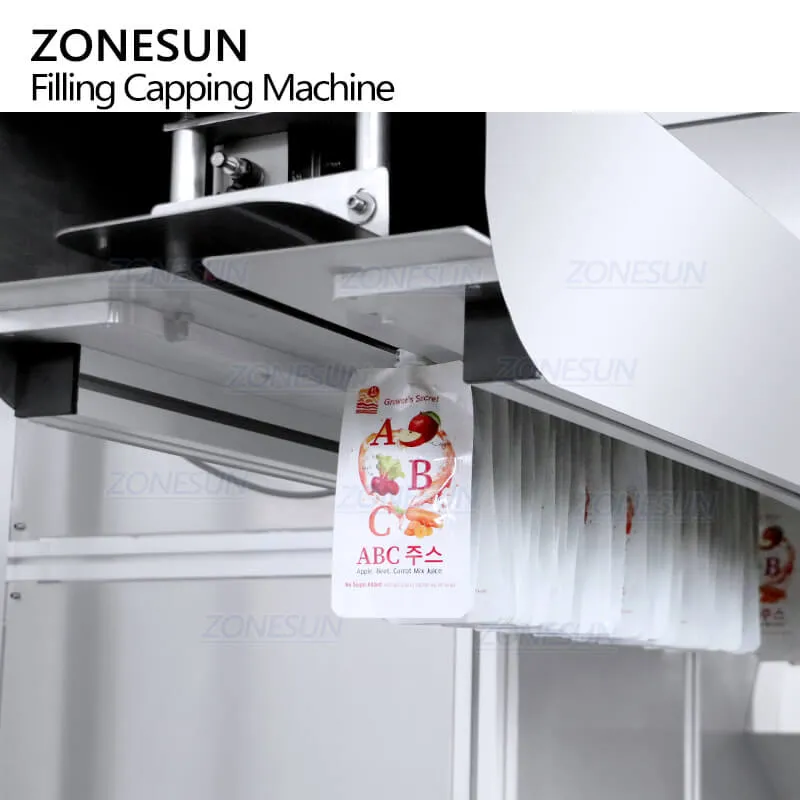

This structure is designed for feeding spout pouch automatically, helping to save labor cost. It can be customized according to your products.

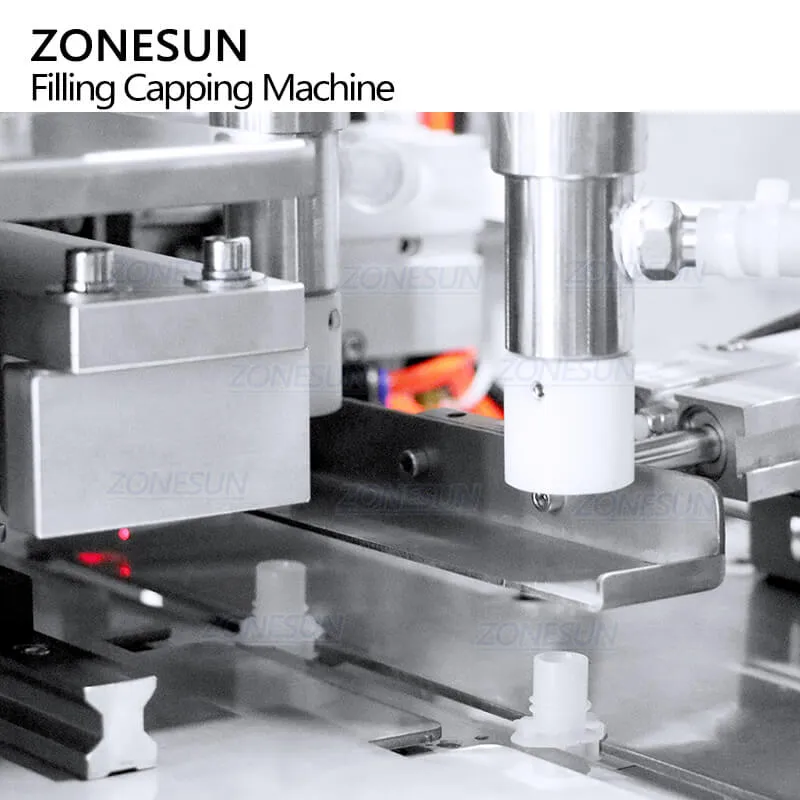

Equipped with magnetic pumps, this machine can fill low-viscosity liquid accurately. The filling speed of two nozzles can be adjusted separately. The quantity of filling nozzles can be customized as needed.

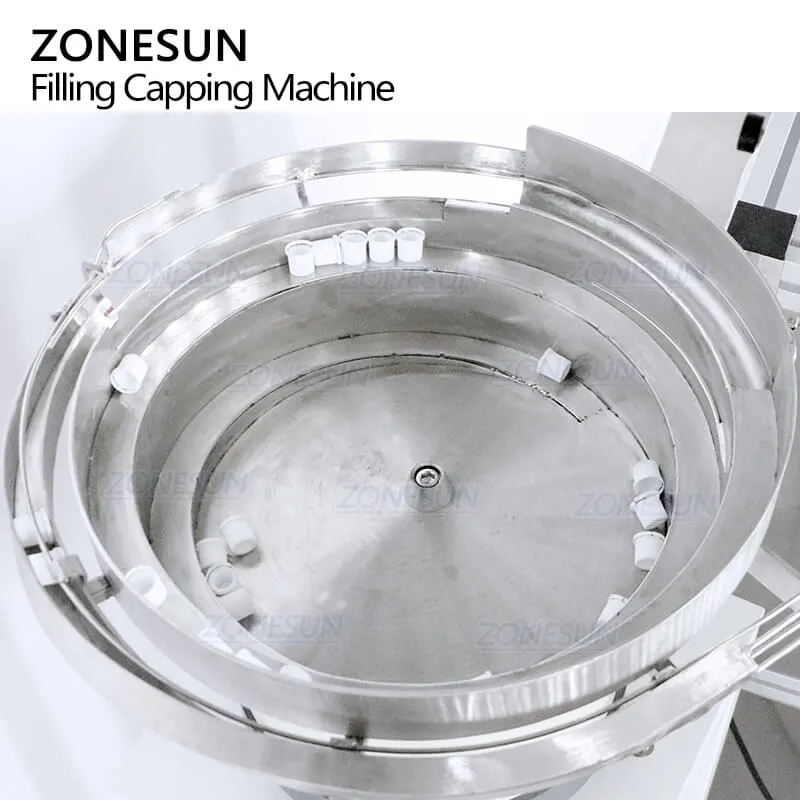

The vibratory bowl is designed for arranging caps and feeding them automatically, improving efficiency. It can be customized according to cap size.

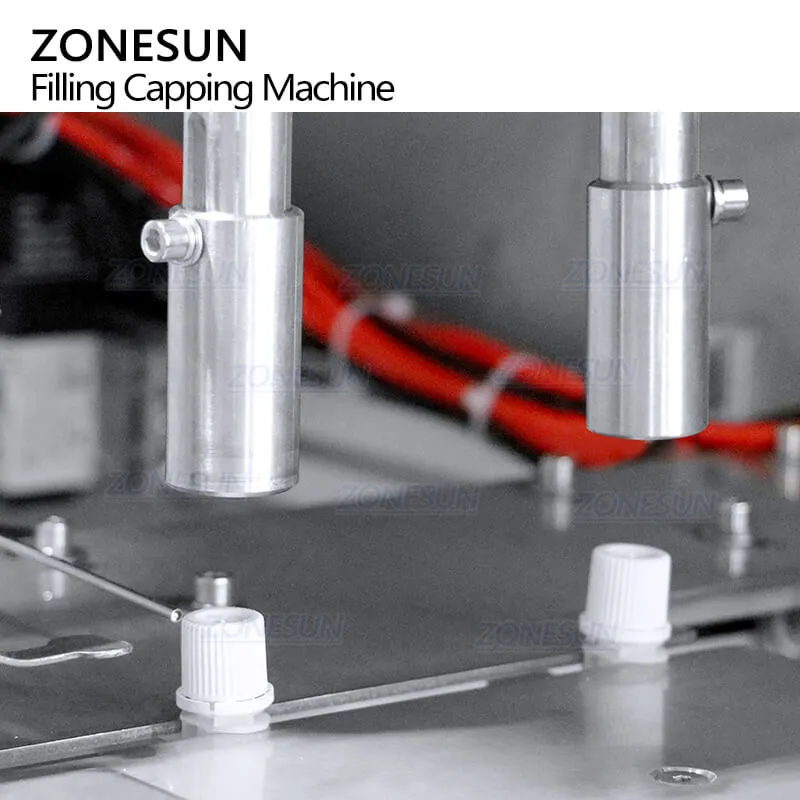

With powerful motor,the capping heads can tighten caps well, ensuring production quality. The size of capping heads can be customized according to cap size.
