Product Details
＋

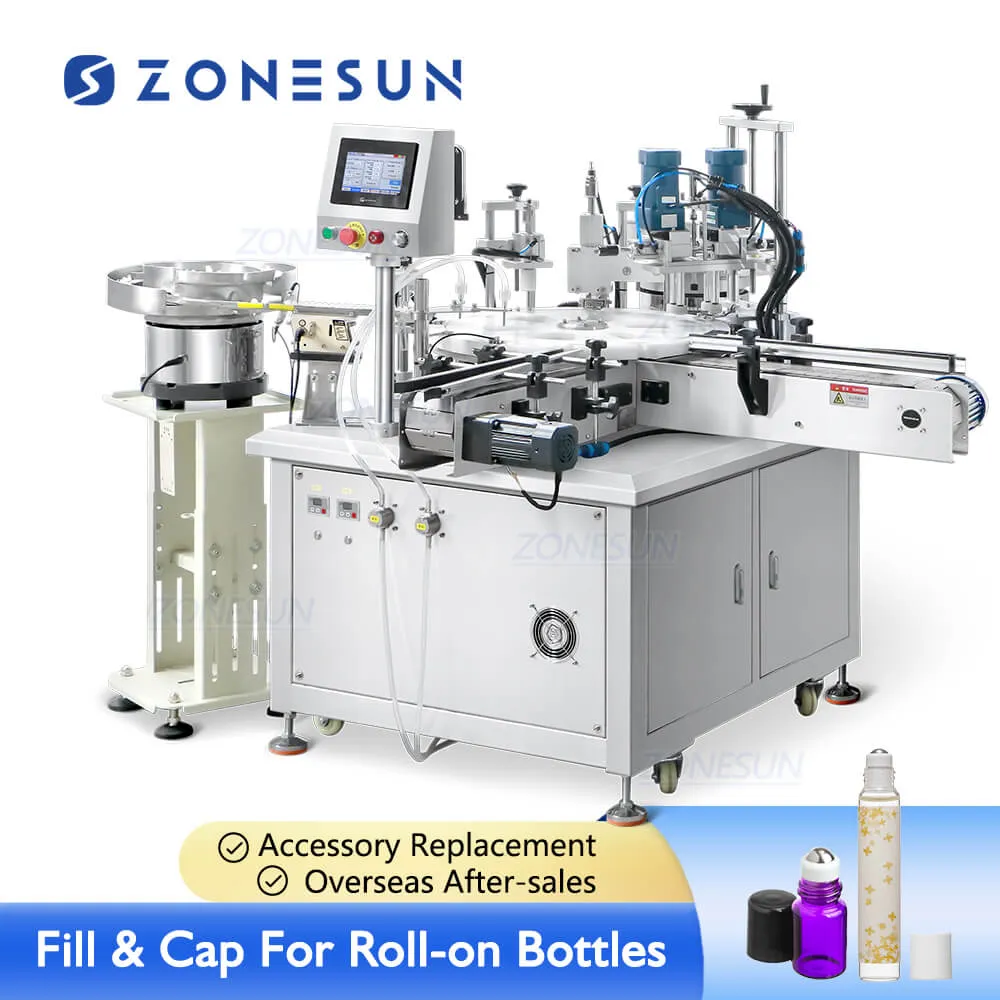

Designed for roll-on bottles, this machine can feed bottle caps, fill liquid and tighten caps, greatly saving working space. It is equipped with two nozzles, each of which can be controlled separately. It can be used in cosmetic, daily chemical industries.
Parameter
- Machine Model: ZS-AFC11
- Voltage: 220V/110V 50-60Hz
- Power: 2500W
- Filling Pump: 316 Stainless Steel Magnetic Pump
- Working Speed: 25-30bottles/min(depending on bottle size and liquid)
- Max Flow Rate: 4L/min*2(based on water)
- Suitable Bottle Size: Customized
- Bottle Cap Diameter: Customized
- Package Size: About 2040*1660*1650mm
- Package Weight: About 535kg

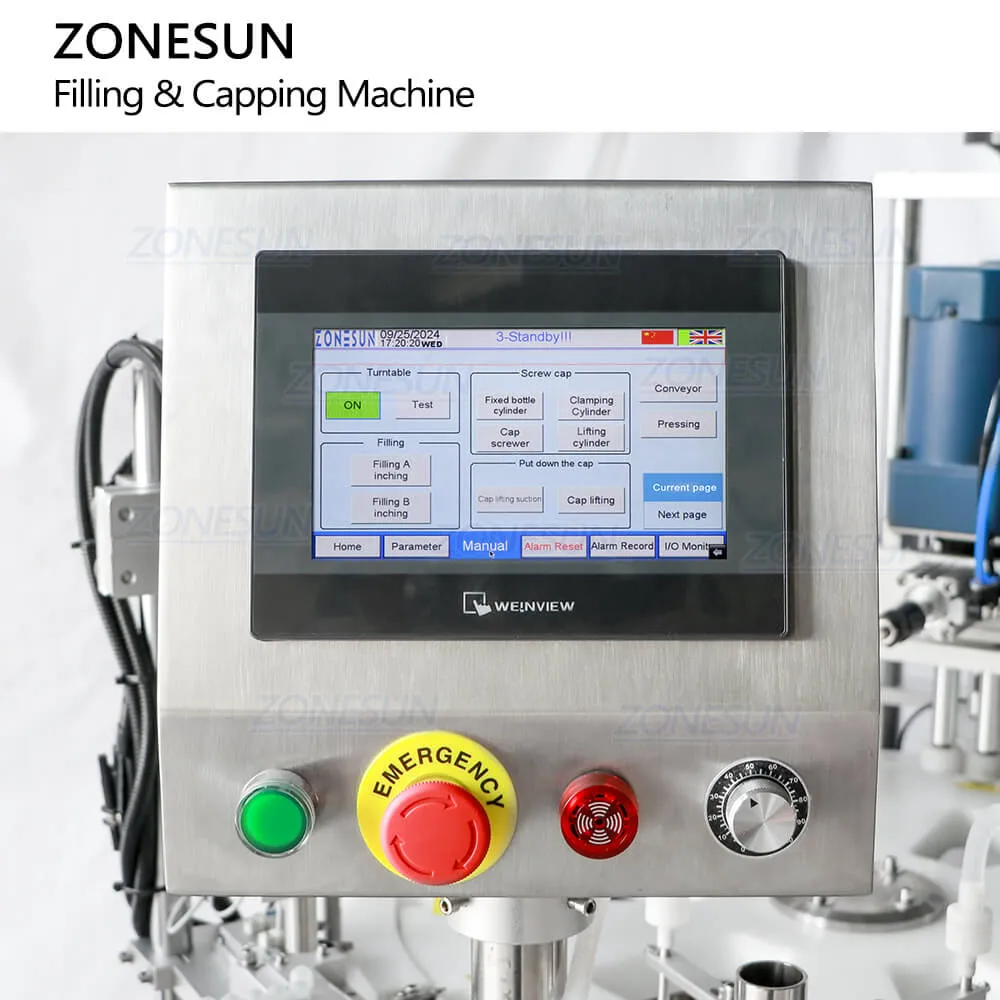

Control Panel
Touch screen control panel makes parameter setting more intuitively, simplies machine operation and debugging
Touch screen control panel makes parameter setting more intuitively, simplies machine operation and debugging

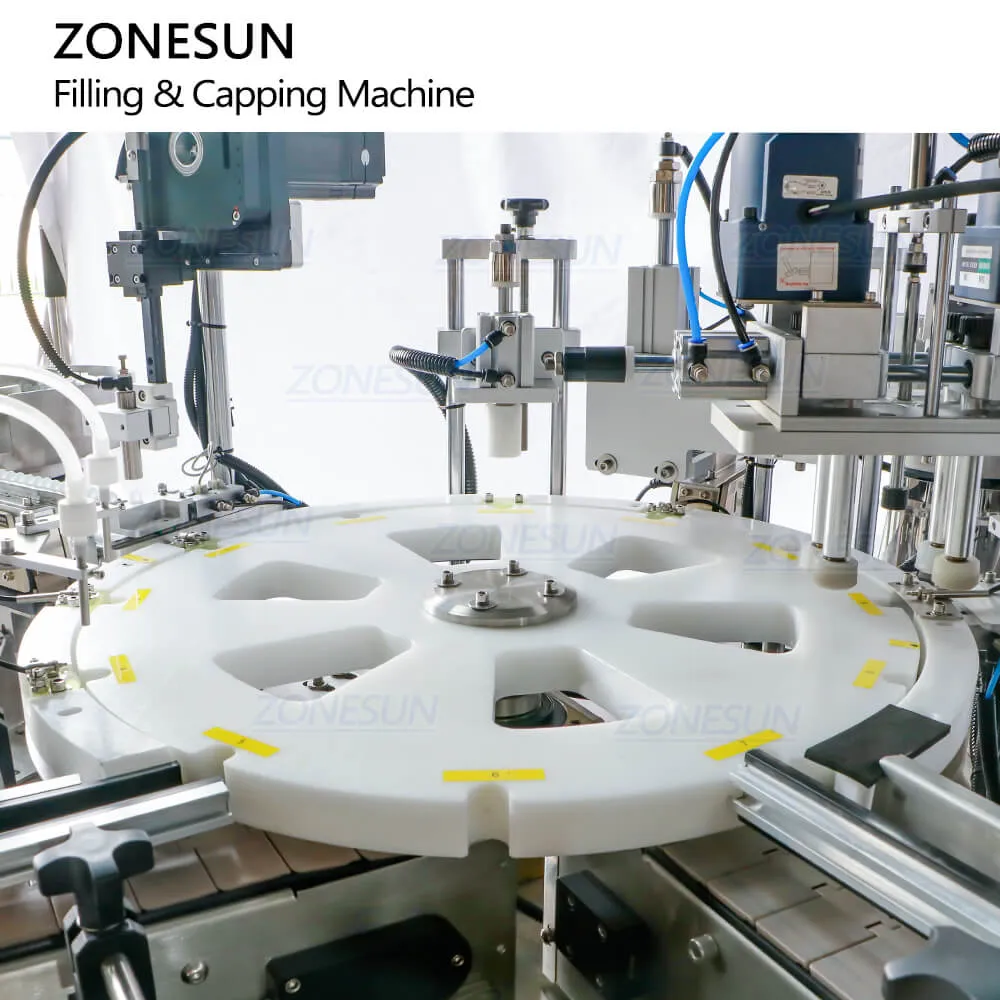

Filling Capping Structure
Starwheels is customizable based on bottle size, compact machine body saves working space.
Starwheels is customizable based on bottle size, compact machine body saves working space.

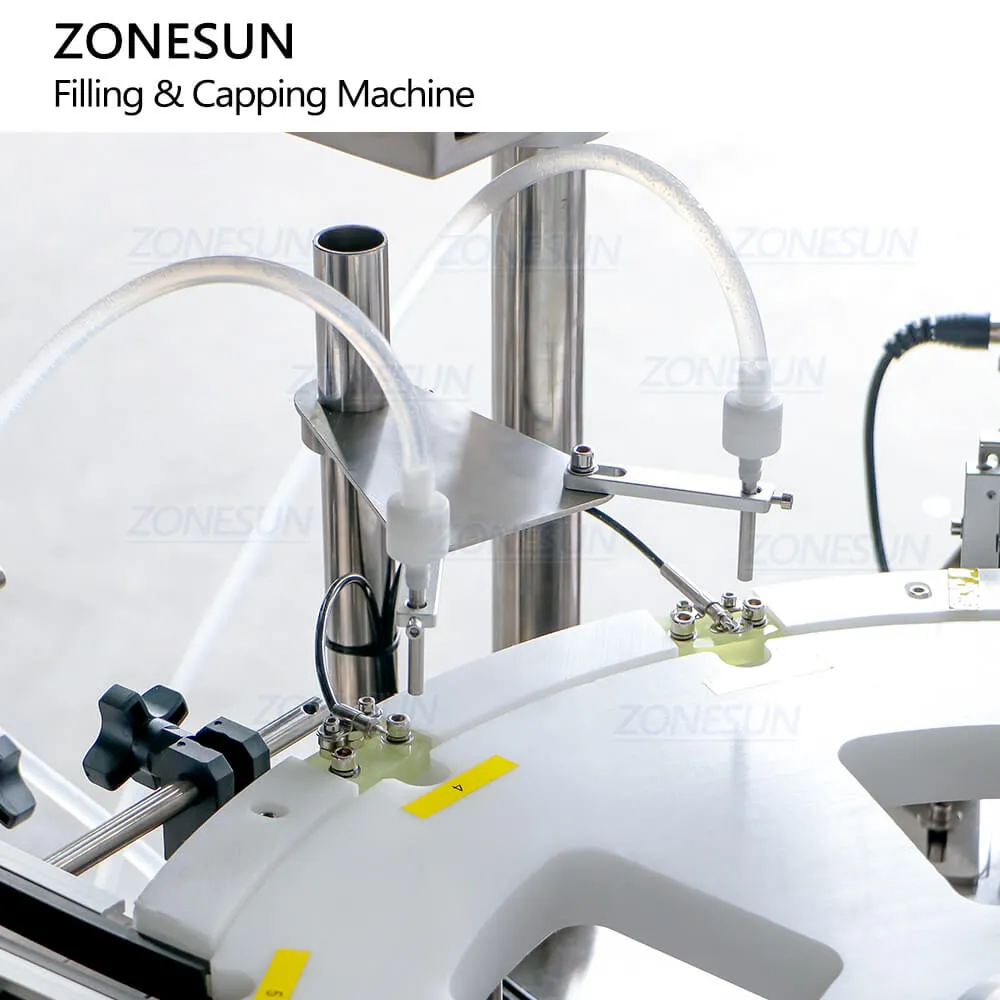

Filling Structure
Equipped with 316 stainless steel magnetic pumps, it can fill liquid accurately.
Equipped with 316 stainless steel magnetic pumps, it can fill liquid accurately.

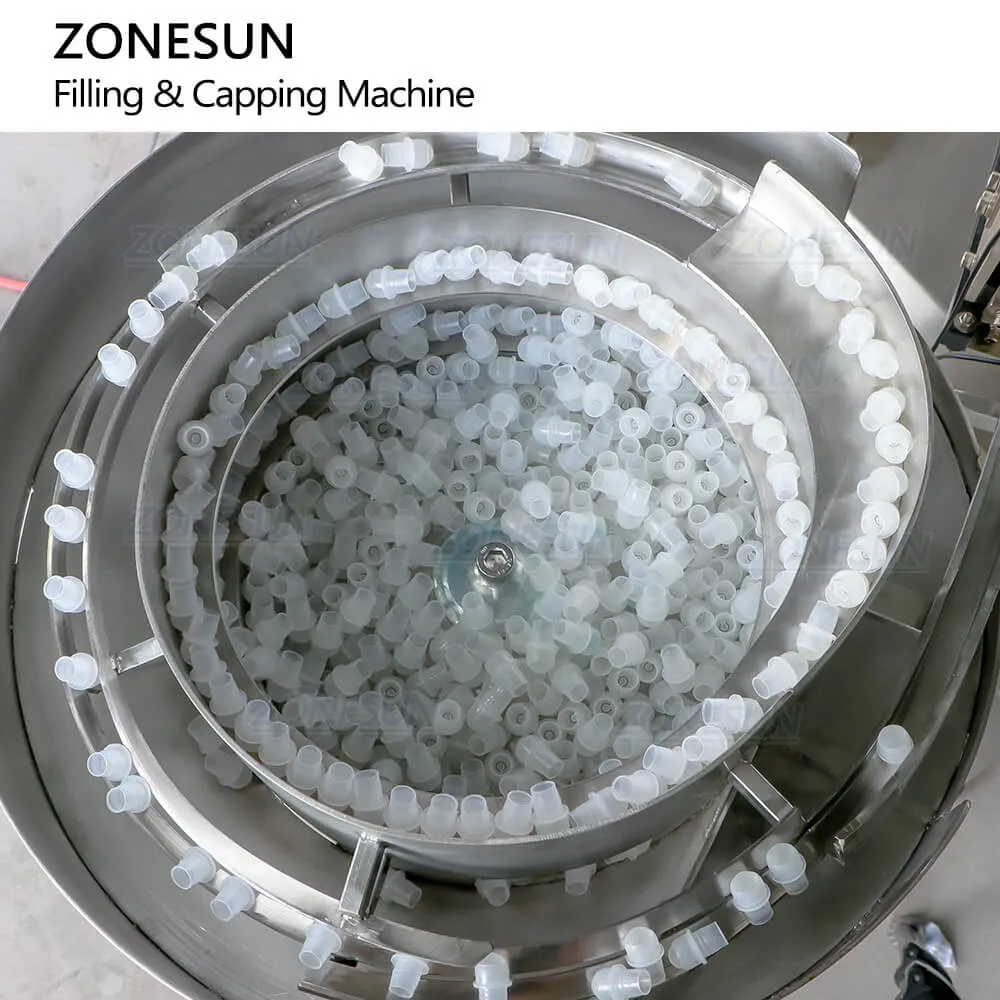

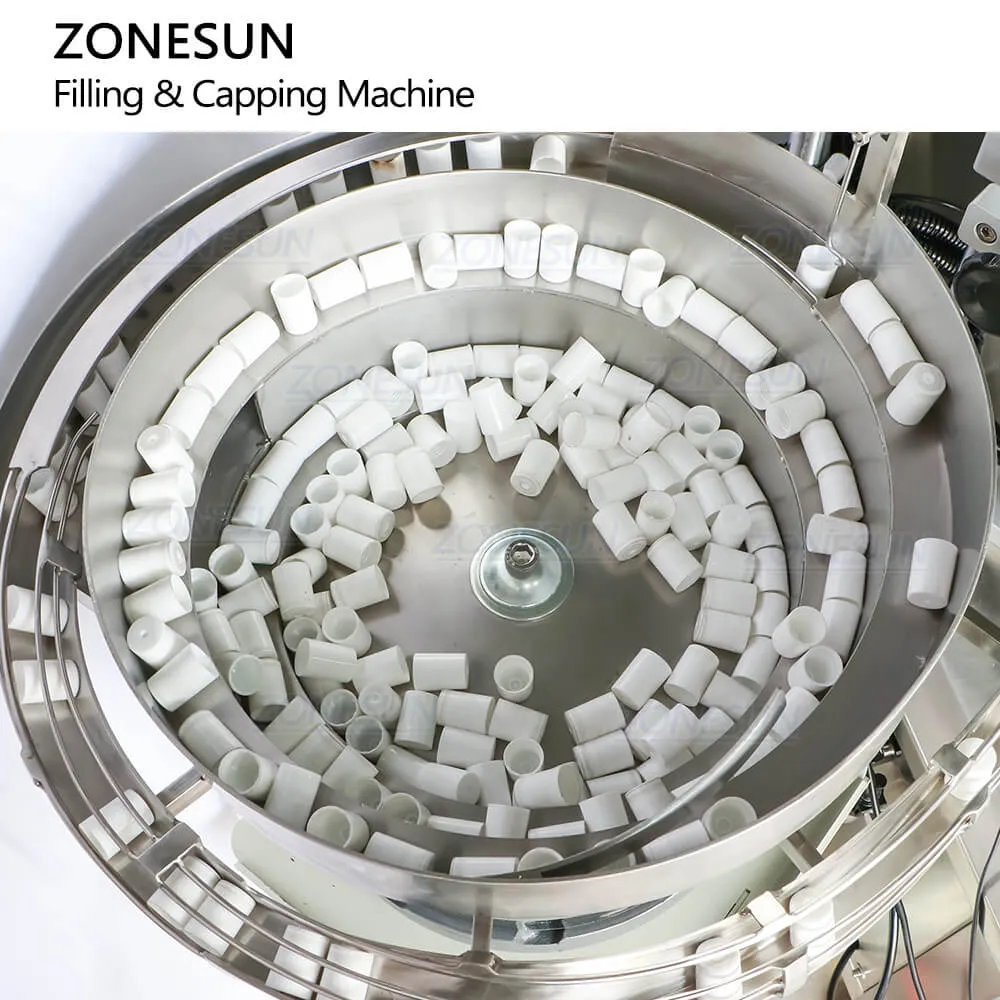

Two Vibratory Bowls
Can arrange and feed roller balls and caps to bottles. They can be customized as your products.
Can arrange and feed roller balls and caps to bottles. They can be customized as your products.

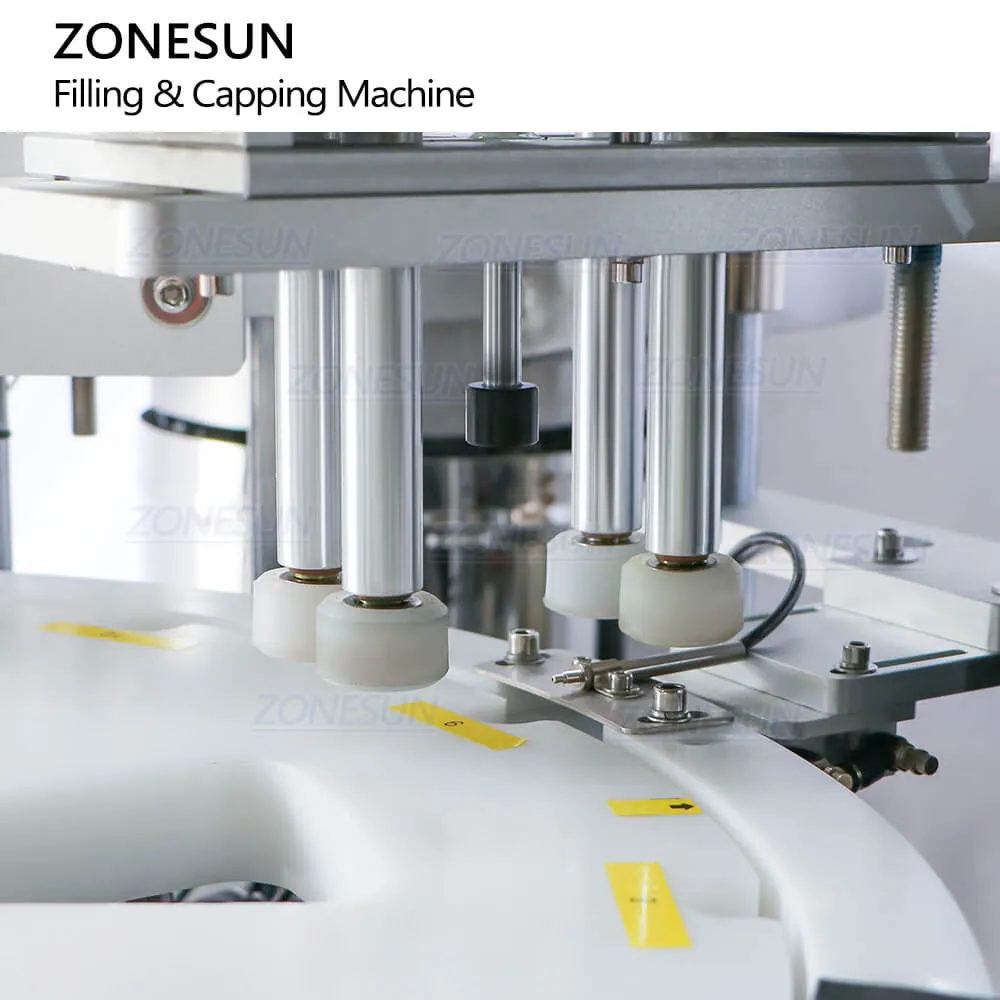

Capping Structure
The height of capping structure can be adjusted as needed. It can be customized as your products.
The height of capping structure can be adjusted as needed. It can be customized as your products.
