Key Features,

• Reliable and flexible implementation – entry-level flow-through filter
• Easy maintenance thanks to cleaning handles and bottom drain
• Pollutant level indicator and temperature indicator for convenient filter monitoring

Characteristics,

• Incl. OASE Clear Water Guarantee
• Oxygen enrichment through special water channelling

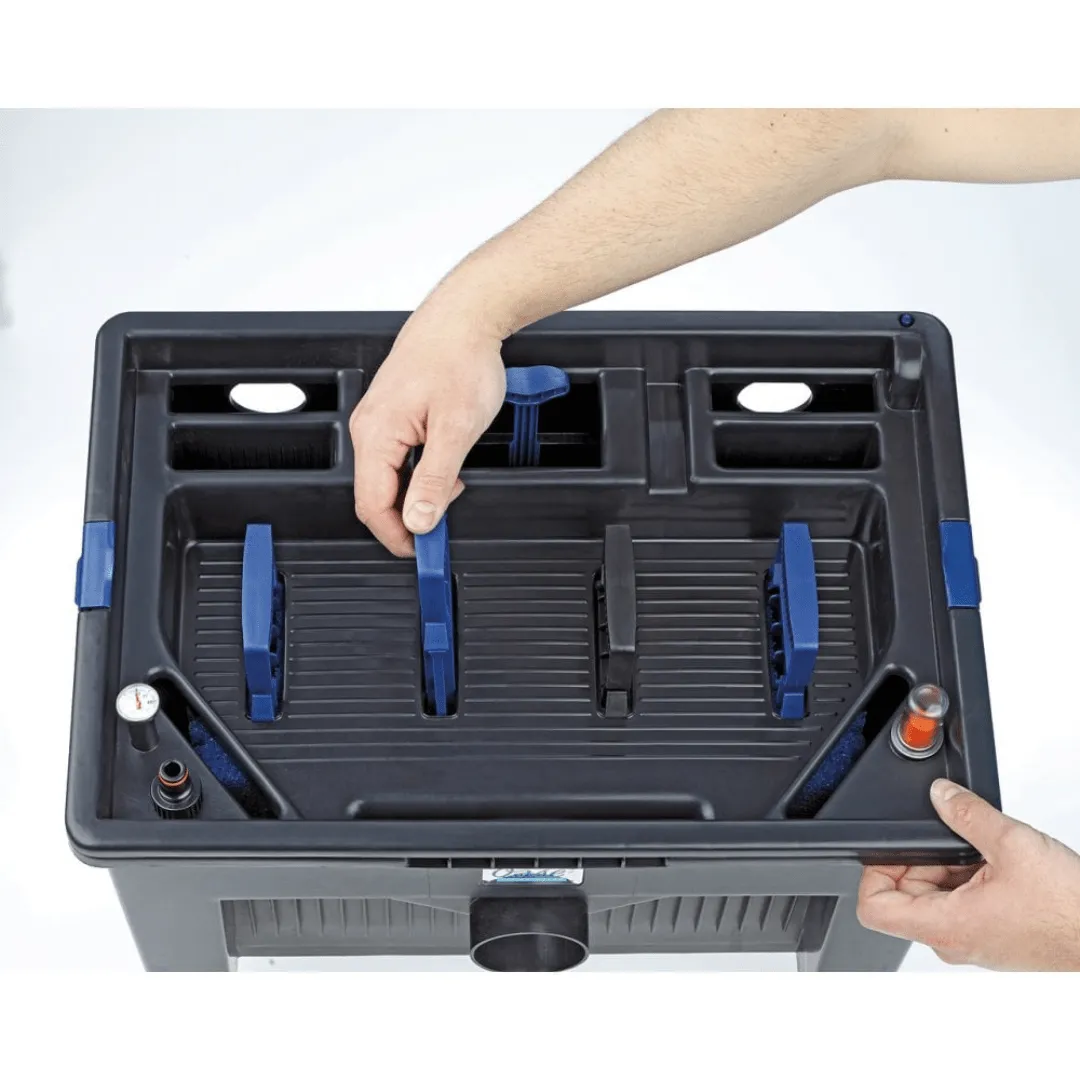

• Cleaning handles for convenient maintenance
• Including displays for pollutant level and water temperature
• Sludge drain for easy removal of coarse debris
• Easy to conceal; the filter can be recessed into the ground to ⅓ of its height
• Filters and pumps are optimally matched
• Suitable for ponds up to 18.0 m3

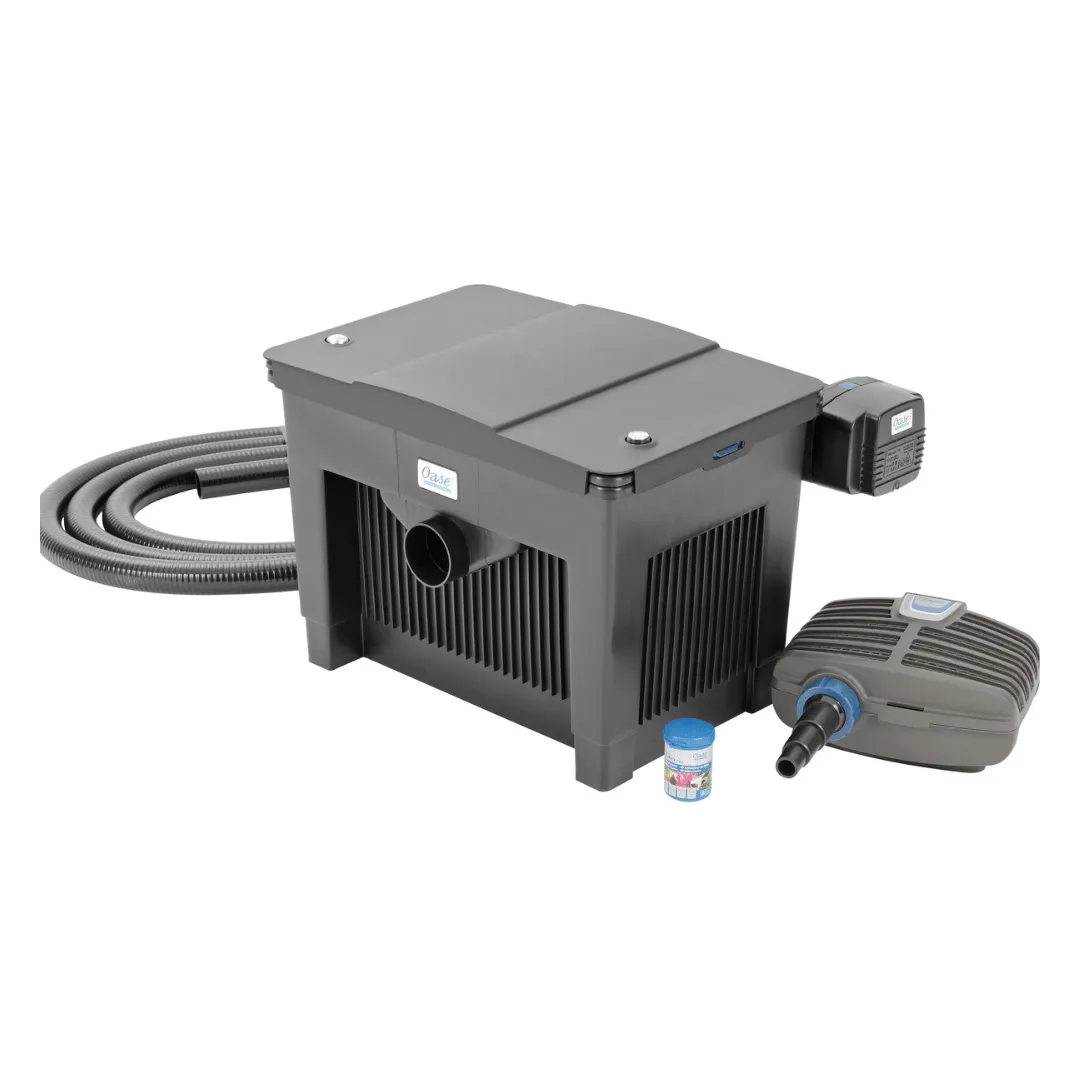

• Included in the scope of delivery: Vitronic UVC 18 W; 5 m 1 ½” (38 mm) hose and AquaMax Eco Classic 5500: 60 W; 5300 l/h Qmax; 2.8 m Hmax

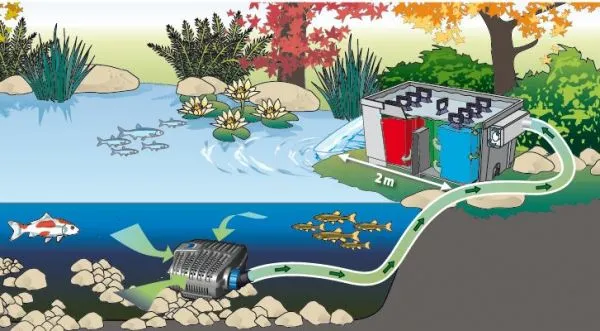

• Combination of mechanical biological cleaning and effective UVC technology
• Incl. 100 ml BioKick Filter Starter* only BioSmart Set 18000 – /36000

BioSmart Set 18000:

Dimensions filter (L x W x H) mm 559 x 596 x 408
Net weight kg 13.70
Rated voltage 220 - 240 V / 50/60 Hz
Power consumption UVC W 18
Power cable length UVC m 5.00
Guarantee Years 2
UVC power W 18

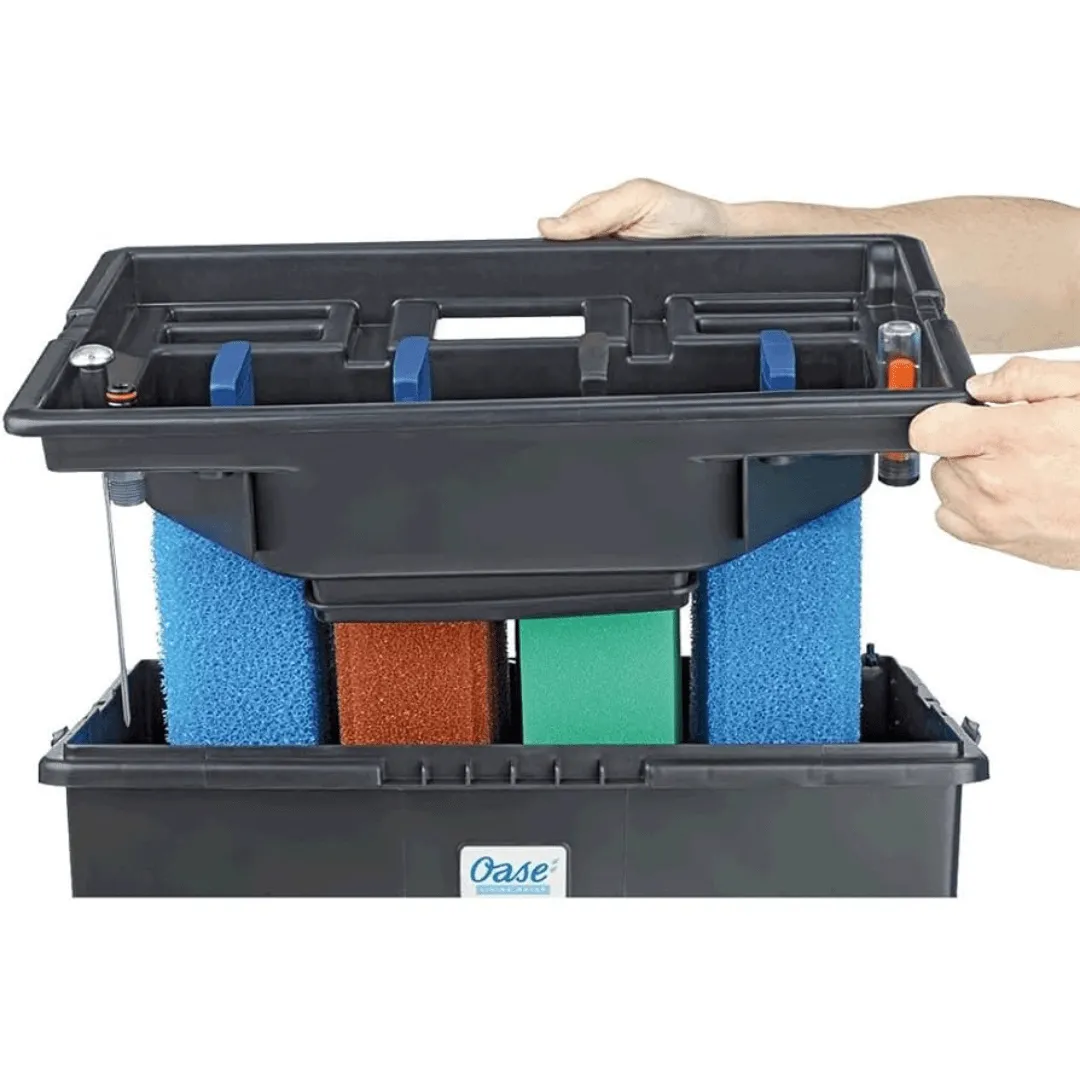

Number of filter foams, total Units 5
Number of blue filter foams Units 2
Number of red filter foams Units 1
Number of green filter foams Units 1
Temperature display Yes
Inlet connections mm 19 / 25 / 32 / 38
Inlet connections ¾", 1", 1 ¼", 1 ½"

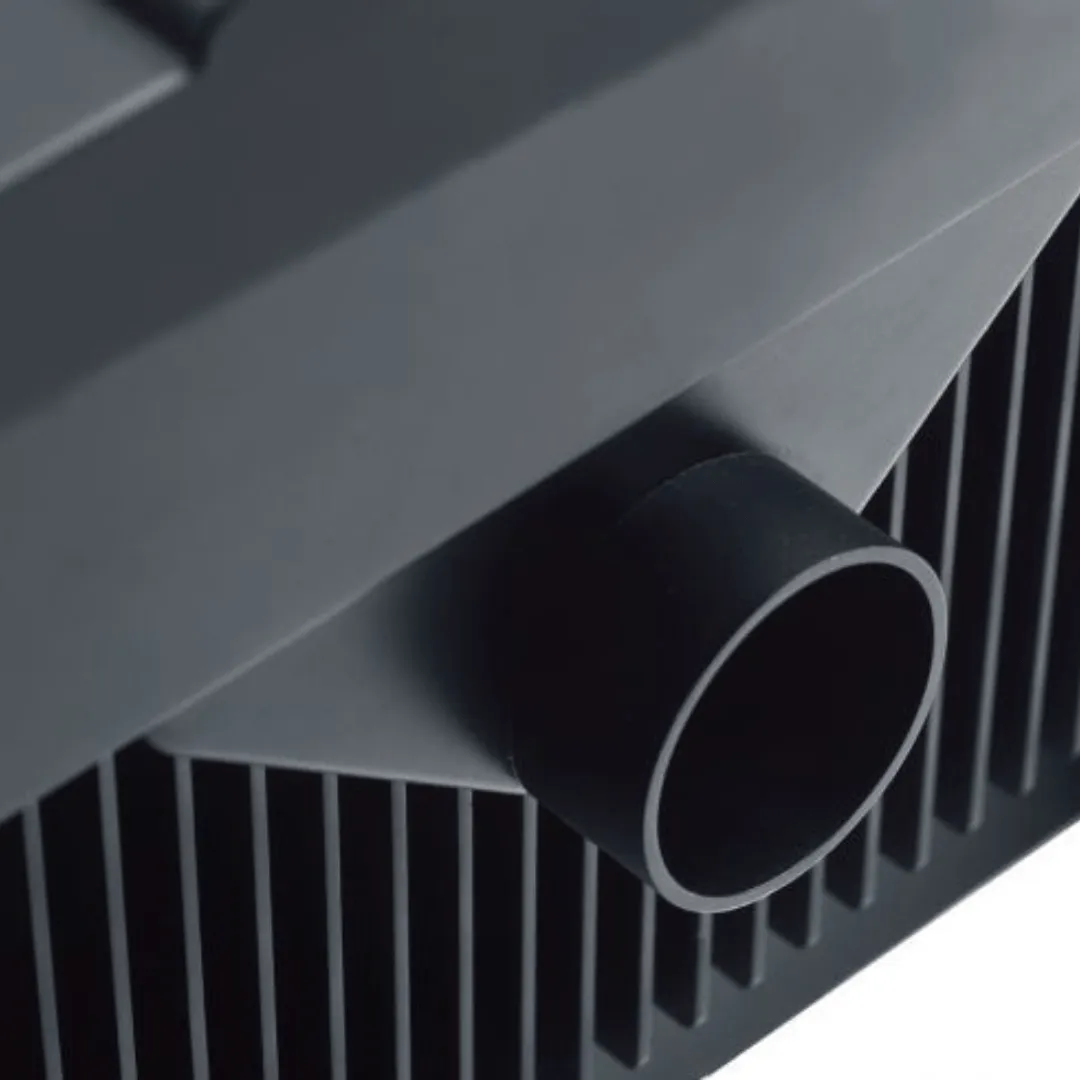

Outlet connections DN 75
Sludge discharge connections DN 50
Corresponding filter/watercourse pump AquaMax Eco Classic 5500
Dimensions pump (L x W x H) – mm mm 280 x 230 x 140
Power consumption pump W 60
Max. flow rate l/h 5500
Power cable length pump m 10.00
Suitable for ponds up to max. m3 18.0
Suitable for ponds with fish stock m3 9.0
Suitable for ponds with koi m3 4.5
