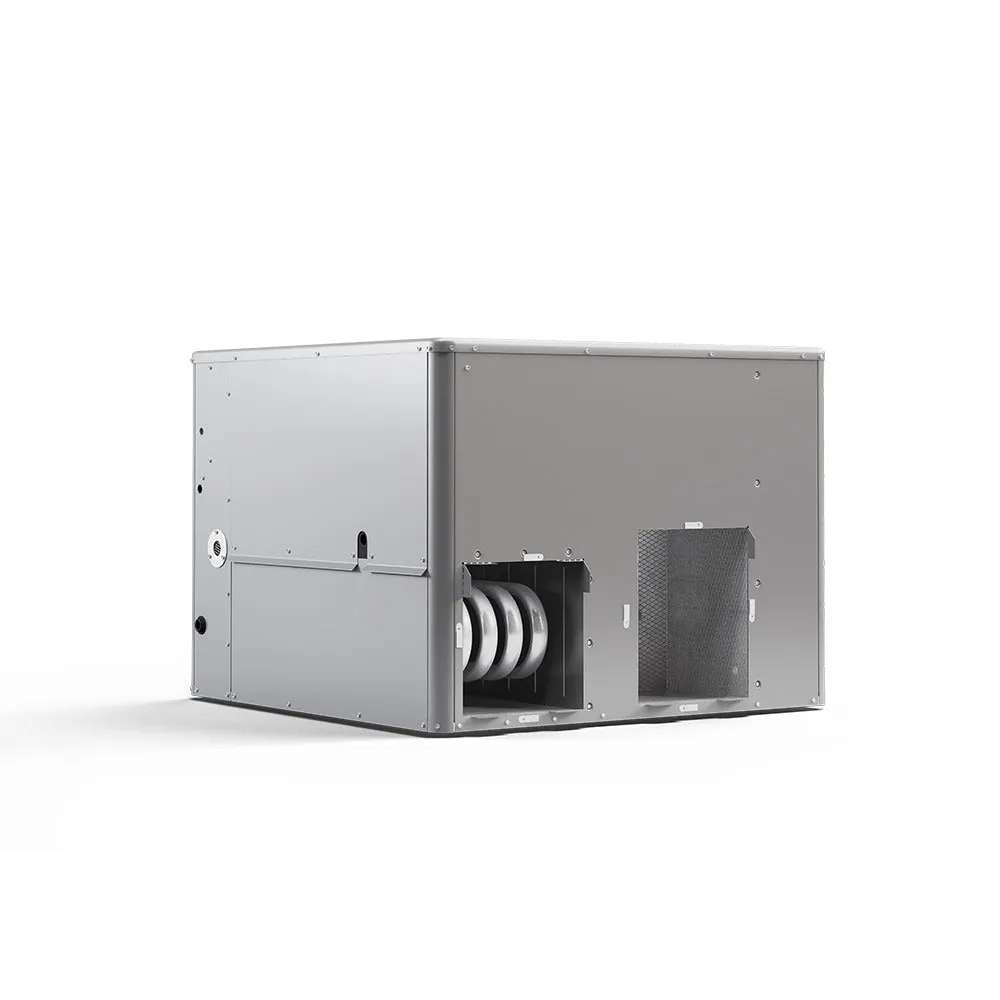

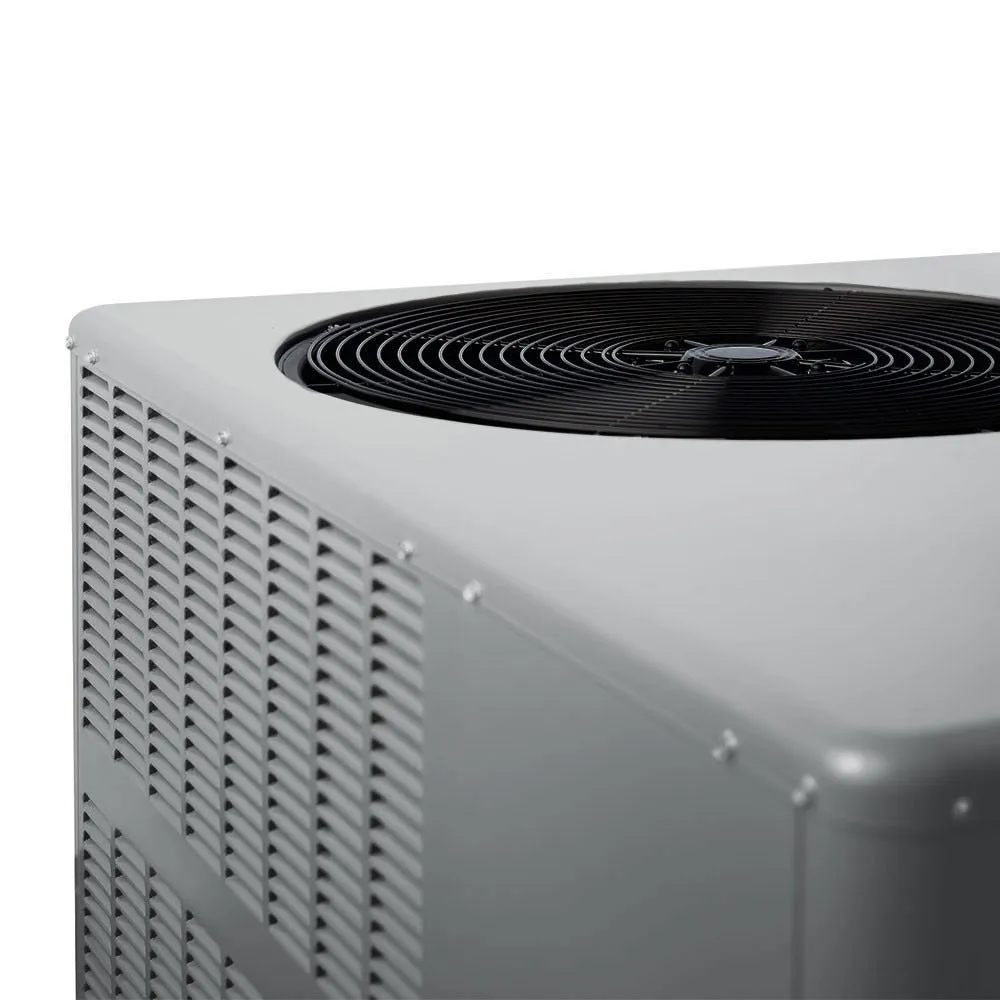

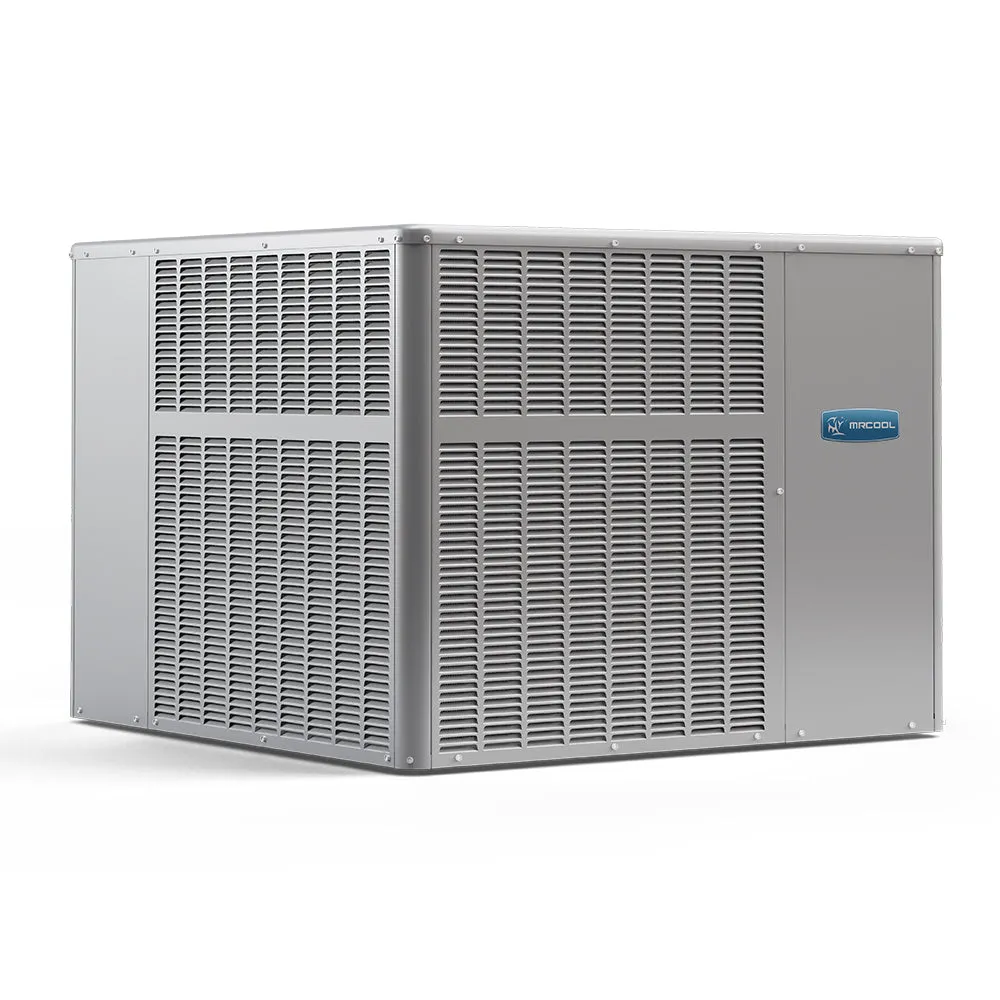

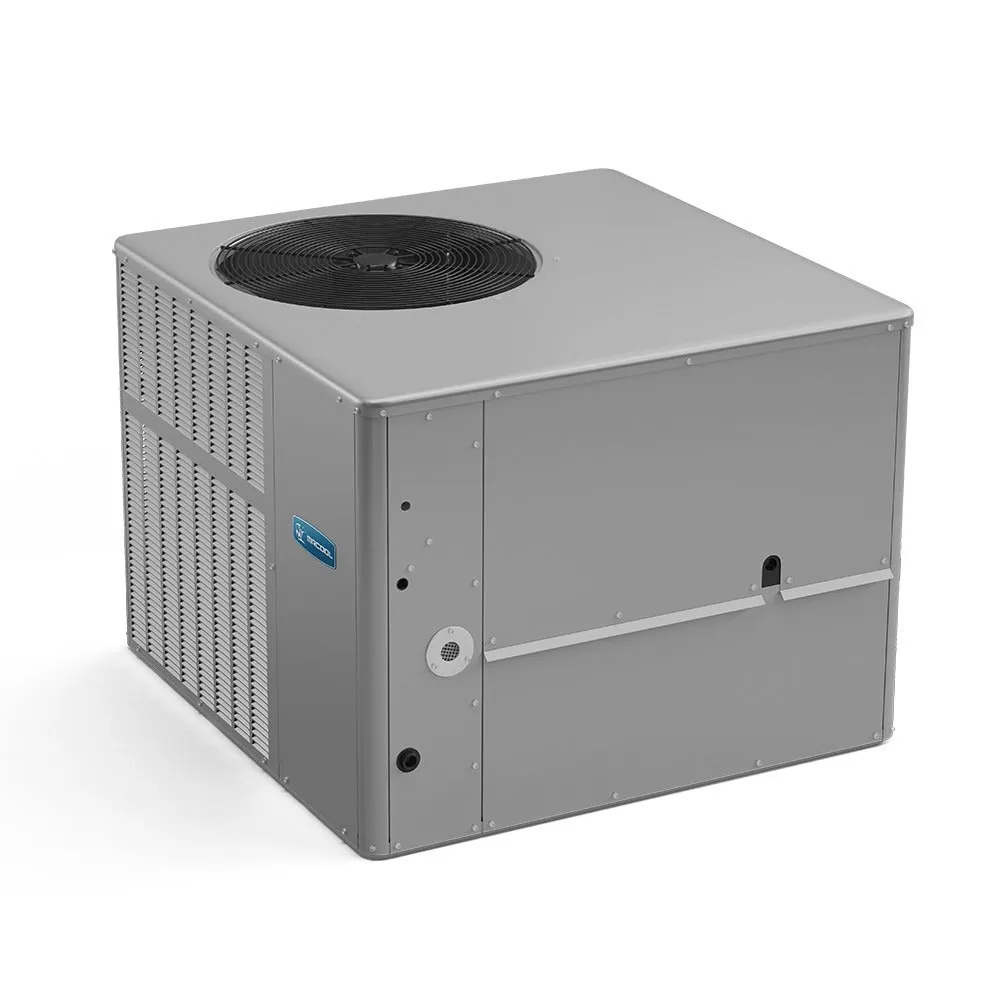

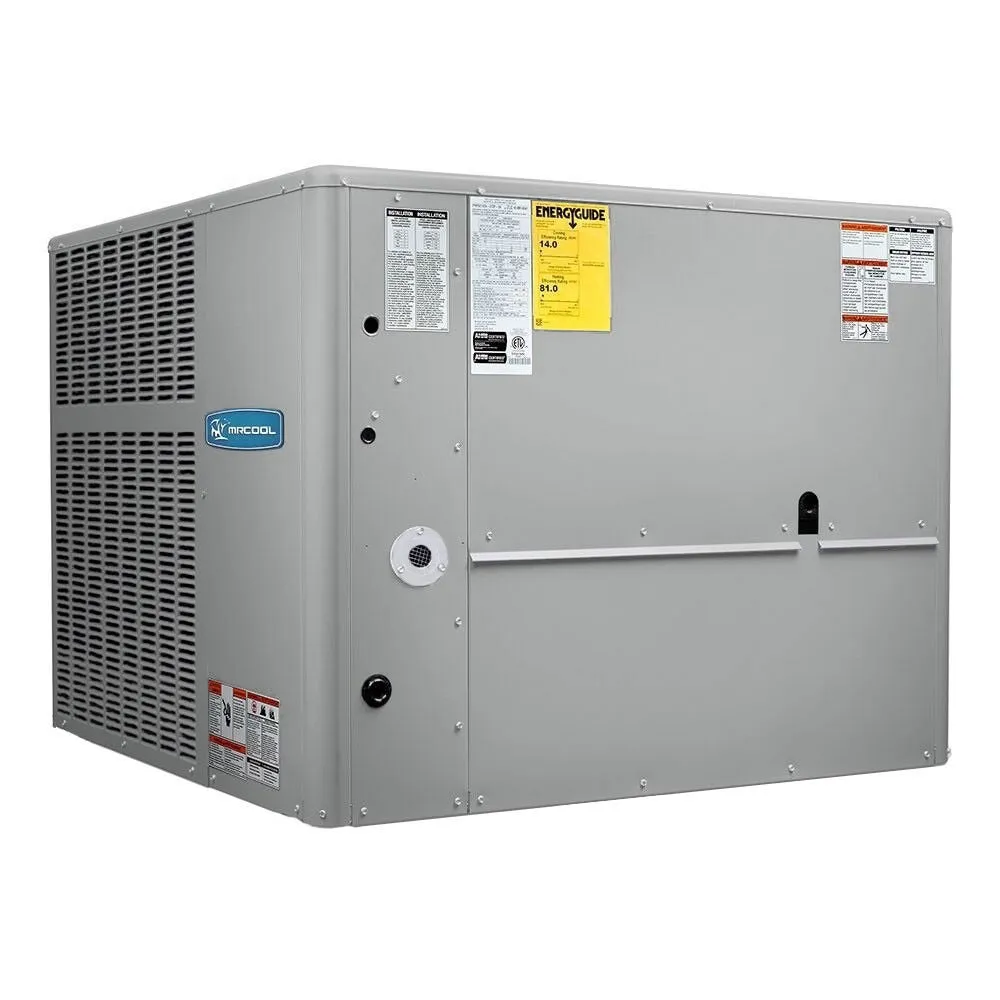

MRCOOL® Signature Series 3.5 Ton 42,000 BTU 14 SEER Heat Pump Package Unit - Multiposition
The MRCOOL® Signature Series 3.5 Ton 42,000 BTU 14 SEER Heat Pump Package Unit combines high performance cooling and powerful heating in one convenient, easy-to-install system. These units are competitively priced and operate at 14 SEER efficiency. A MRCOOL packaged heat pump will be a great solution for tough air comfort problems in a suburban home, commercial office space, condominium, seaside villa, or wherever you desire. MRCOOL packaged heat pumps combine superior product quality, energy efficiency, quiet operation, and financial value. The units come standard with a high performance compressor and eco-safe, chlorine-free R-410A refrigerant. This is truly an all-in-one packaged unit that will deliver energy efficient air comfort with minimal environmental impact.
Key Features
- Warranty is 10 years on all parts if registered, 5 years if not (no licensed tech required)
- 14 SEER efficiency
- Designed for easy and convenient installation
- Optional electric heat available
- R-410A environmentally friendly refrigerant
- Built in short cycle protection to protect the compressor
- One piece "no leak" top design
- Sloped drain for improved indoor air quality
- Louvered panel coil protection
- Insulation to minimize heat loss plus reduce sound
- Built in "quiet shift" operation during defrost on select models
- Efficient constant torque motor for wide airflow range
Specifications & Dimensions
| MODEL | MPH421M414A |
|
SEER |
14 |
|
SEER2 |
13.4 |
| EER | 11 |
| EER2 | 10.6 |
|
COP 47 |
3.5 |
| HSPF | 8 |
| HSPF2 | 6.7 |
| CFM | 1400 |
| TONNAGE | 3 1/2 |
|
COOLING CAPACITY |
40000 |
|
HEATING CAPACITY |
39000 |
|
VOLTAGE |
208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| STAGE | Single |
|
MAX FUSE BREAKER |
40 |
|
MIN CIRCUIT AMPACITY |
27.8 |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
16 |
|
MAX COVERAGE AREA |
1750 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
173 |
|
DECIBEL RATING |
78 |
|
MIN AMBIENT HEAT |
0 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
ECM |
|
CONDENSER FAN MOTOR HP |
1/4 |
|
BLOWER MOTOR TYPE |
ECM |
|
BLOWER MOTOR HP |
1/3 |
|
BLOWER MOTOR SPEEDS |
Multi-speed |
|
BLOWER MOTOR RPM |
475-1540 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
20x20x1 |
|
METERING DEVICE |
TXV |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| AUXILIARY HEATER SIZES |
5kw, 7.5kw, 10kw, 15kw |
| UL RECOGNIZED | No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
No |
| LEED CERTIFIED |
No |
| ASHRAE COMPLIANT |
No |
| ENERGY STAR COMPLIANT |
No |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Warranty is 10 years on all parts if registered |
|
BASE WARRANTY |
5 years if not (no licensed tech required) |
| HAS BATTERIES |
No |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
No |
|
NET DEPTH |
47.66 in |
|
NET HEIGHT |
40.89 in |
|
NET WIDTH |
56.13 in |
|
NET WEIGHT |
433 |
|
GROSS DEPTH |
48 |
|
GROSS HEIGHT |
48 |
|
GROSS WIDTH |
57.25 |
|
FREIGHT CLASS |
175 |
