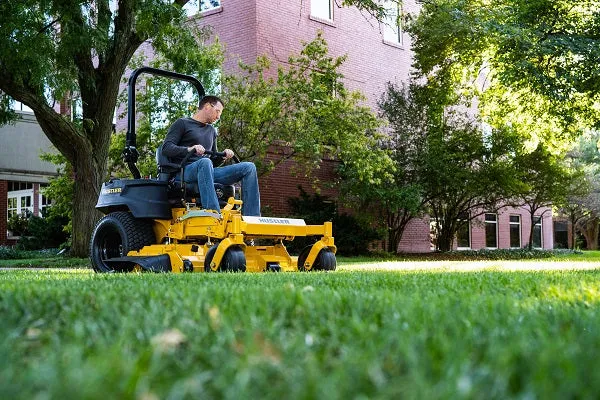

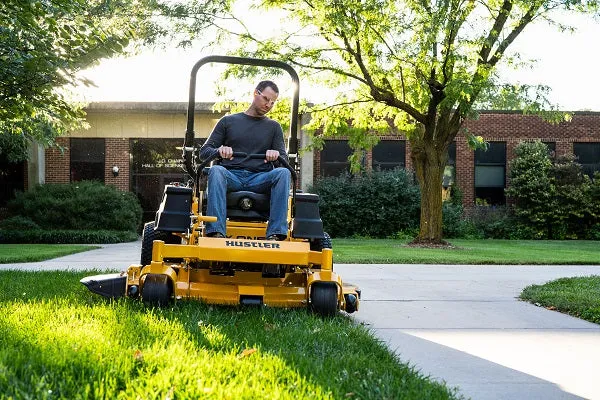

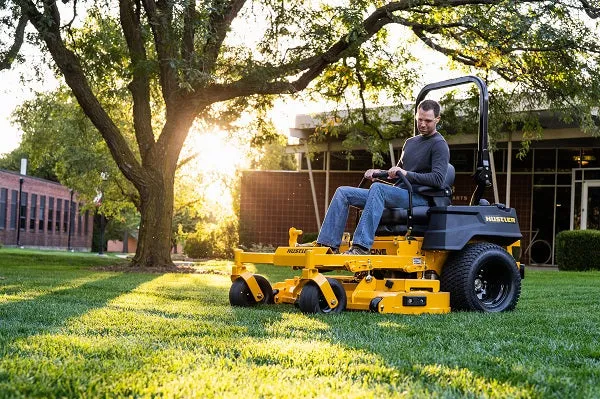

Built For All Day, Everyday Performance

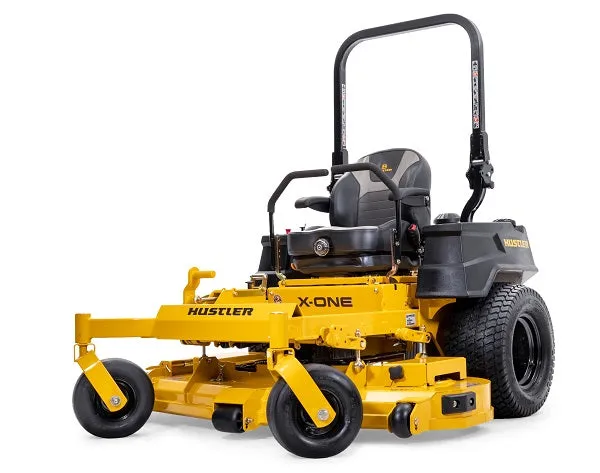

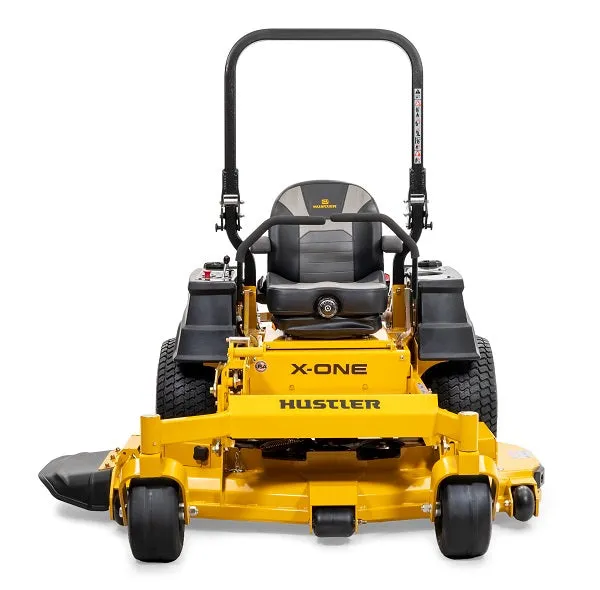

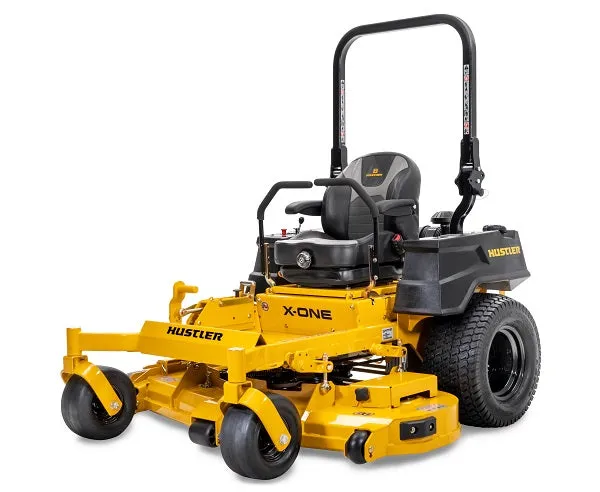

The X-ONE® is built for the full-time commercial landscaper to provide all-day, everyday performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.
- Fabricated Frame for Durability: 1.5” x 3.0” steel frame making it one of the toughest and most durable in its class.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”-5.5” with your foot.
- VX Deck: Fabricated 7 ga. steel engineered for extreme vacuum for enhanced performance and cut quality.
- Commercial-grade Torque: Driven by Parker utilized transmissions.
- I3M Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.
- Incredible Power: Power through with Parker unitized 12cc/rev pumps. Finish fast with a choice of engine sizes.
Hustler X-One Accessories |
|
| Mulching Kit 60" RD |
|
| Flex Forks Kit (cannot use with Bagger installed) |
|
| Front Light Bar Kit |
|
| Side Light Bar Kit (must purchase 128867 to add side light) | |
| Hitch Kit |
|
| Steering Lever Extension Kit |
|
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | |
| Michelin X-Tweel Tire 24 x 12N12 | |
| Run Flat - tire/wheel assembly 13 x 6.5 x 6 | |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX850 |
| Engine Horsepower | 27 |
| Cooling | Air Cooled |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear® ZT-4400® |
| Hydraulic Cooling | Transmission mounted fan |
| Fuel Capacity |
Duel fuel tanks w/ 12 gal. total capacity |
| Ground Speed (Fwd) | Up to 12 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 60" |
| Cutting Height | 1" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 20.50" |
| Blade Tip Speed | 18,800 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge with 7 gauge wrappers
|
| Spindle Mounts |
10 ga. with 11 ga. doubler
|
| Impact Trim Area |
Front of deck: 11 gauge formed channel with rolled edge
|
Construction |
|
| Frame | 1.5" X 3" steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2" steel |
General |
|
| Seat | I3M Suspension Seat |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) | 24 x 12-12 |
| Weight (lbs) | 1305 |
| Height (Inches) | 49, 72.5 w/ ROPS up |
| Length (Inches) | 80.2 |
| Width w/ Chute Up (Inches) | 61.72 |
| Tire-to-Tire Width (Inches) | 54.5 |
| Productivity (Acres Per Hour) | 6.36 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |

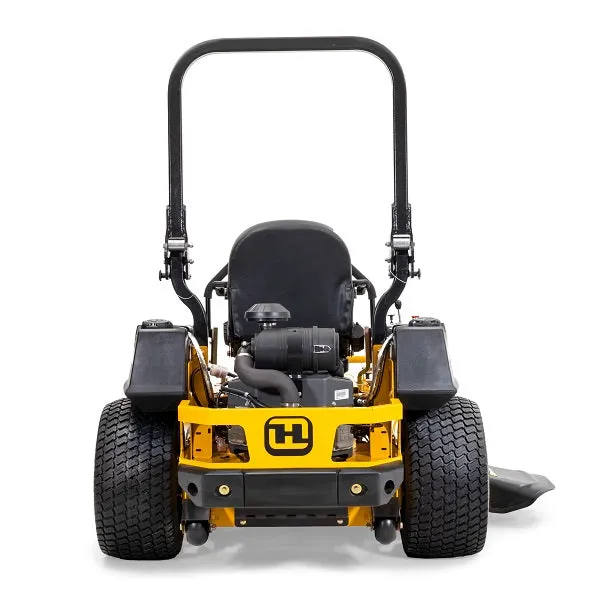

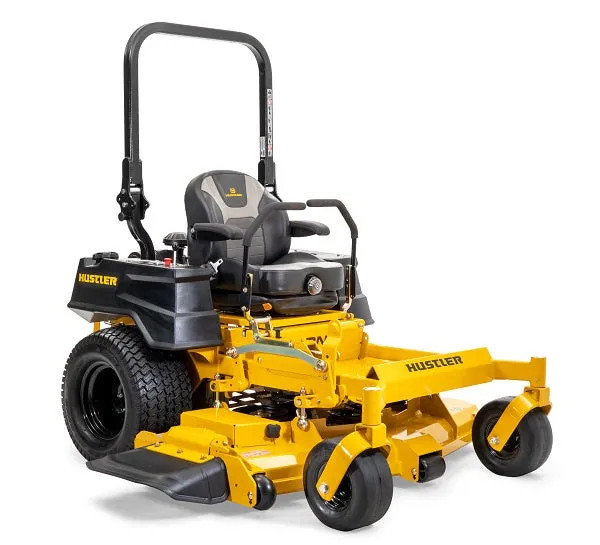

If you have any questions about this Hustler X-One rear discharge 60" zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
