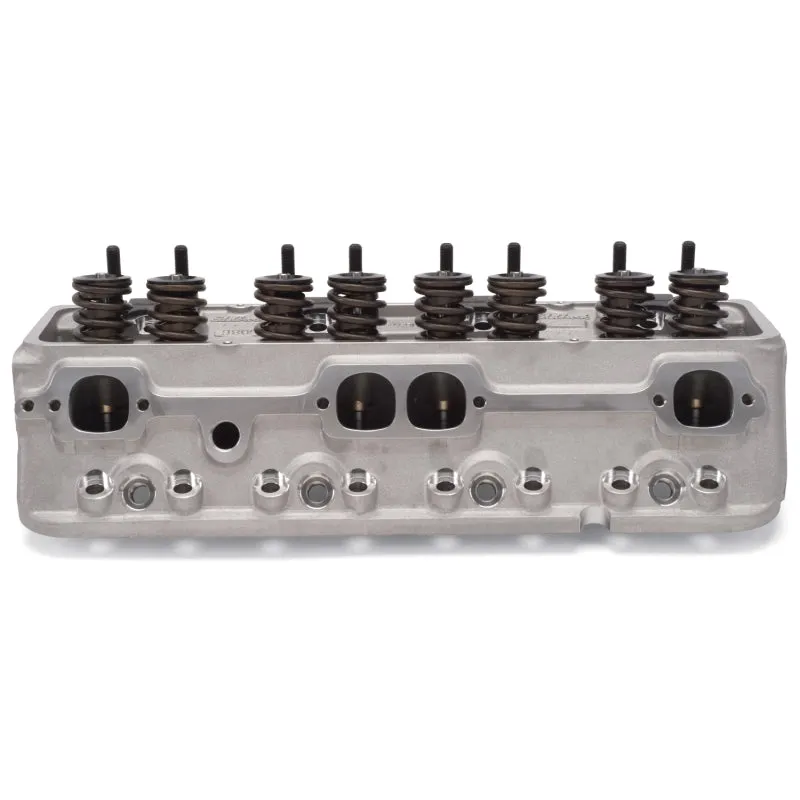

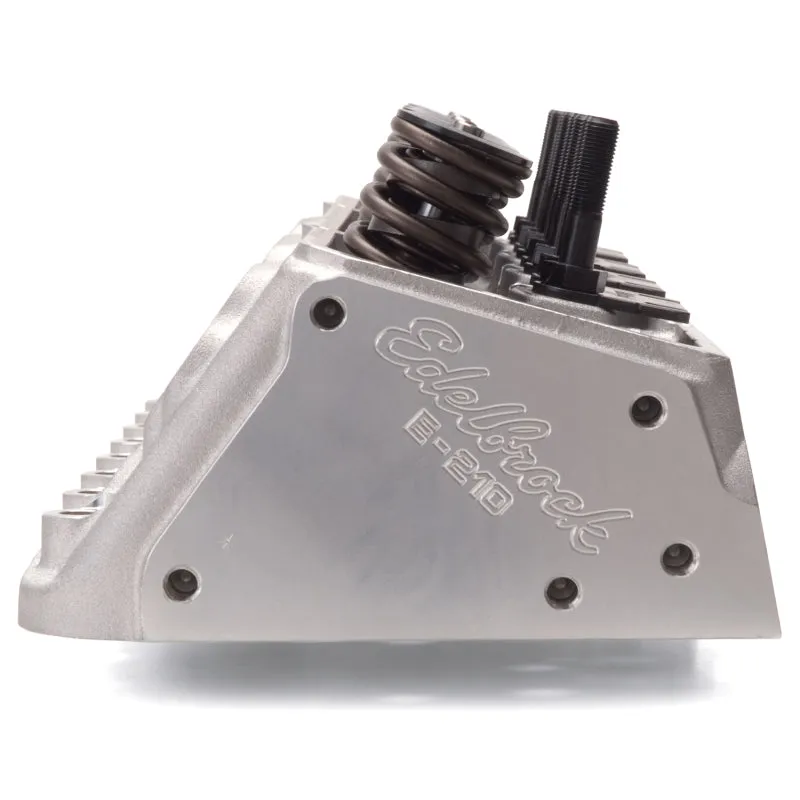

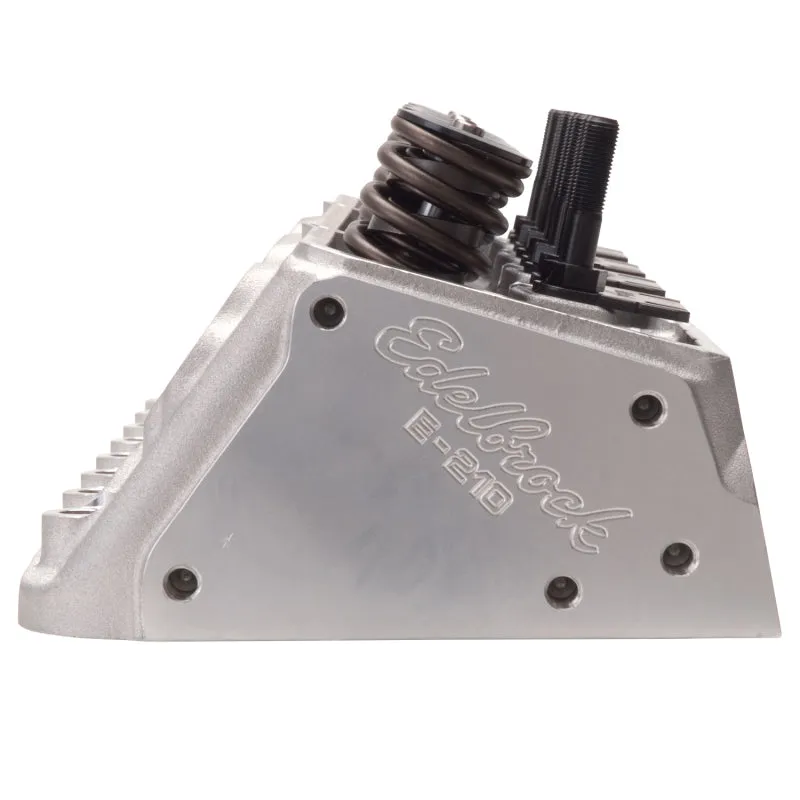

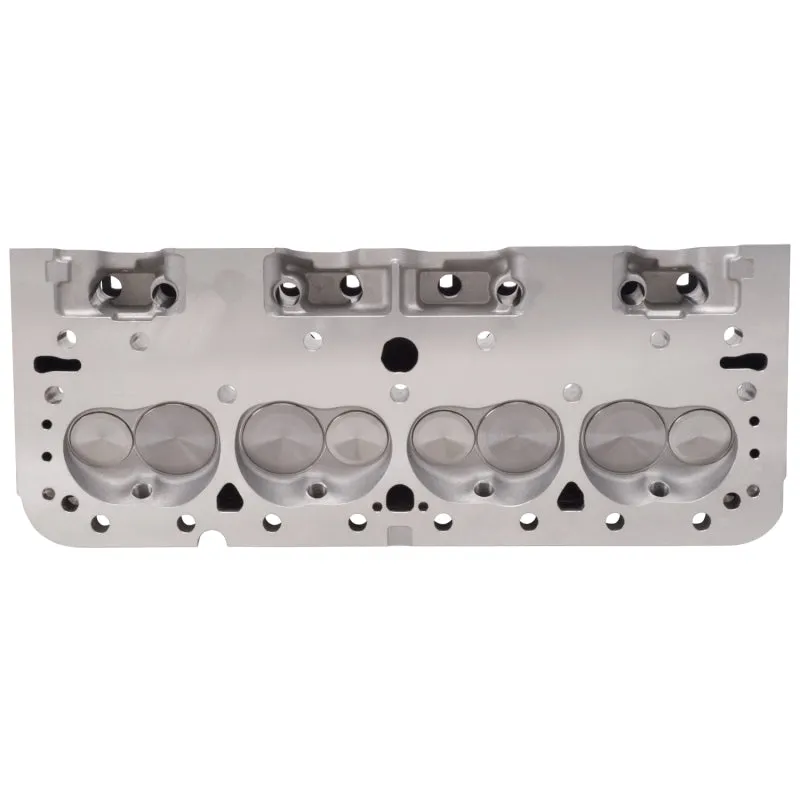

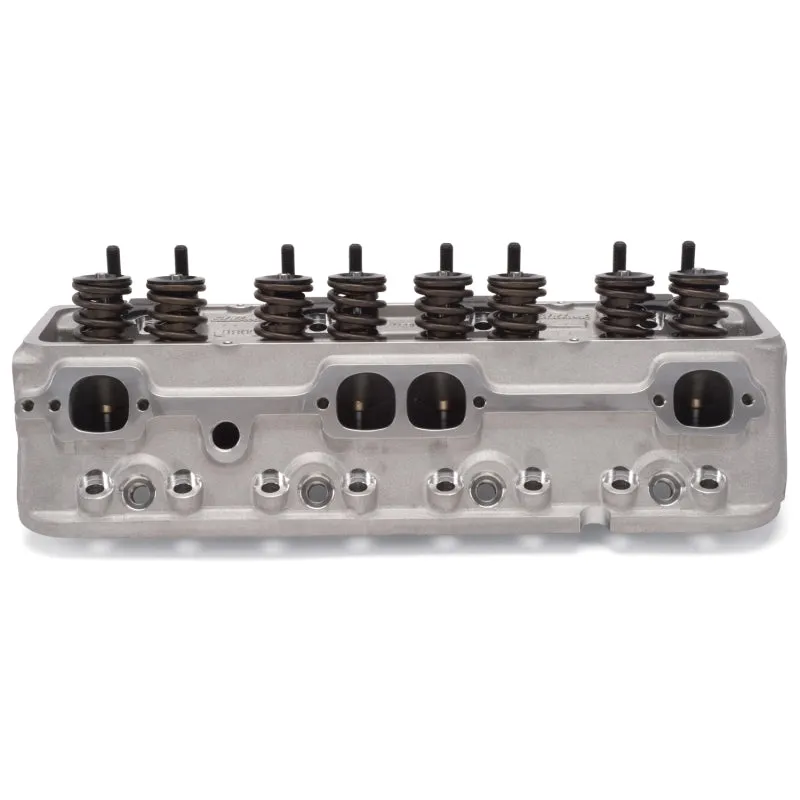

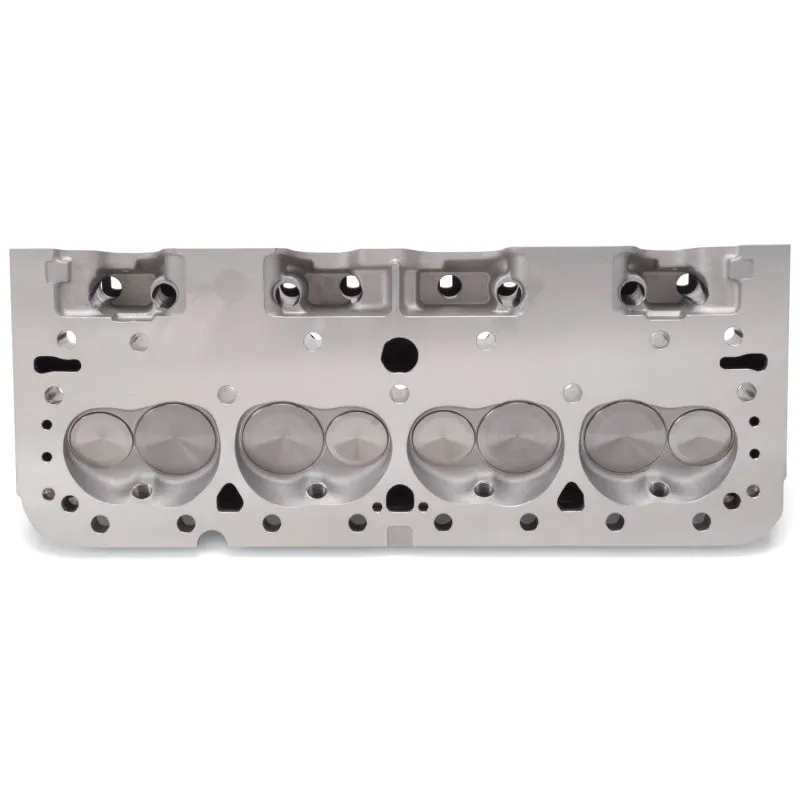

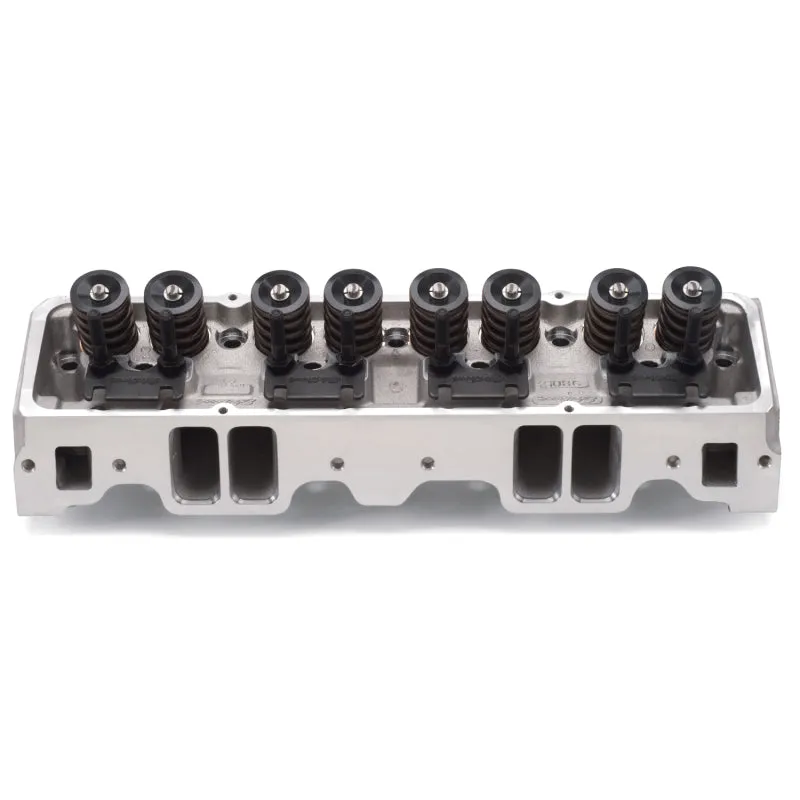

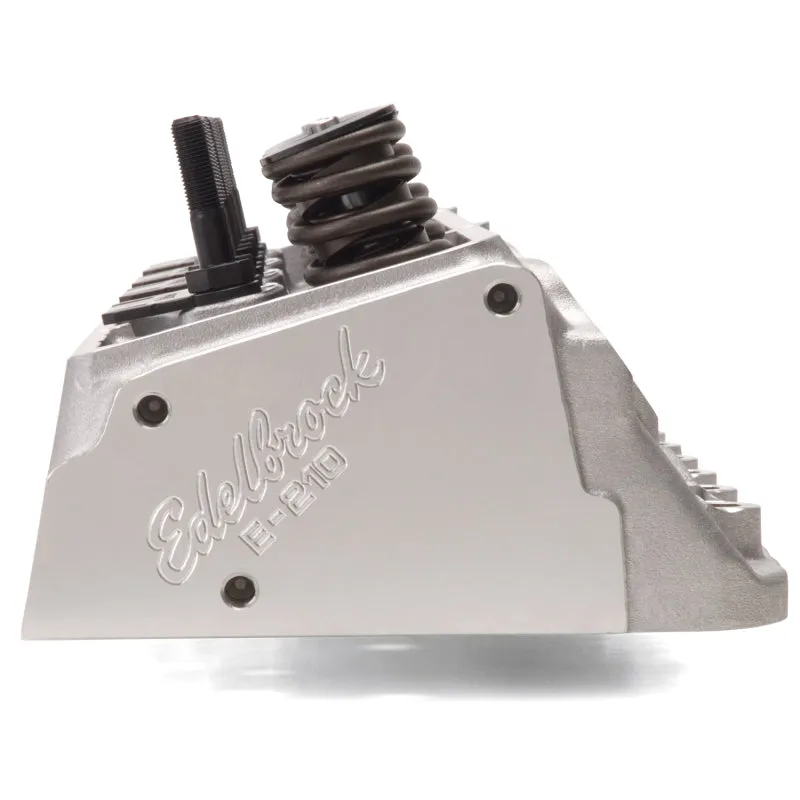

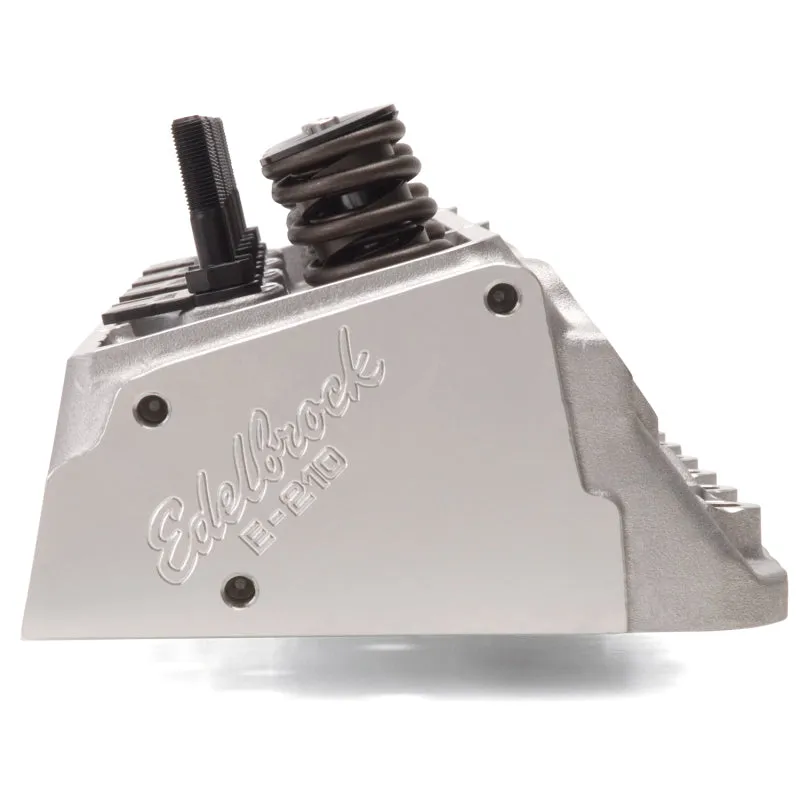

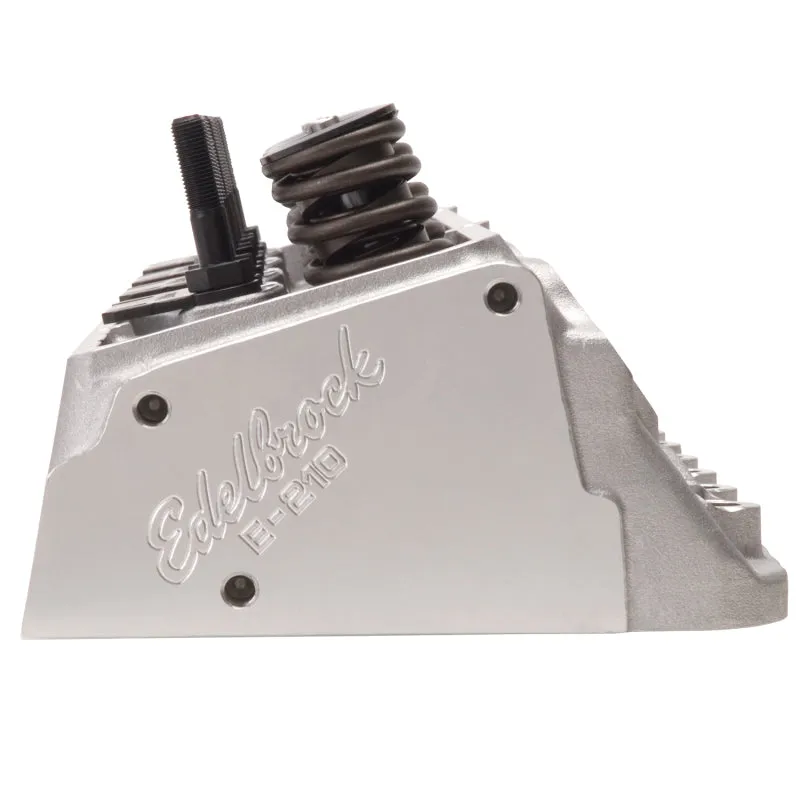

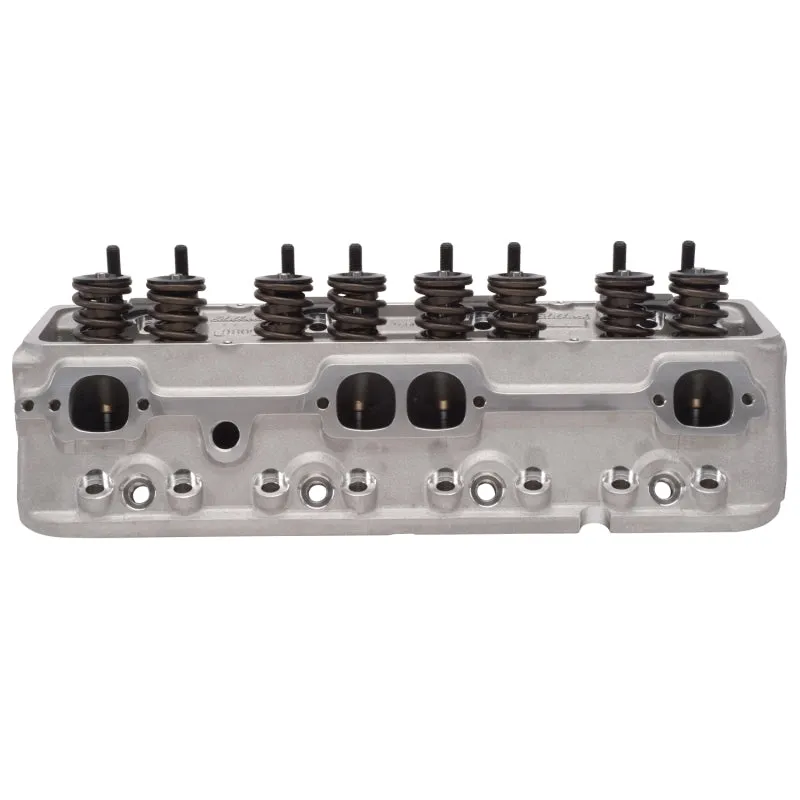

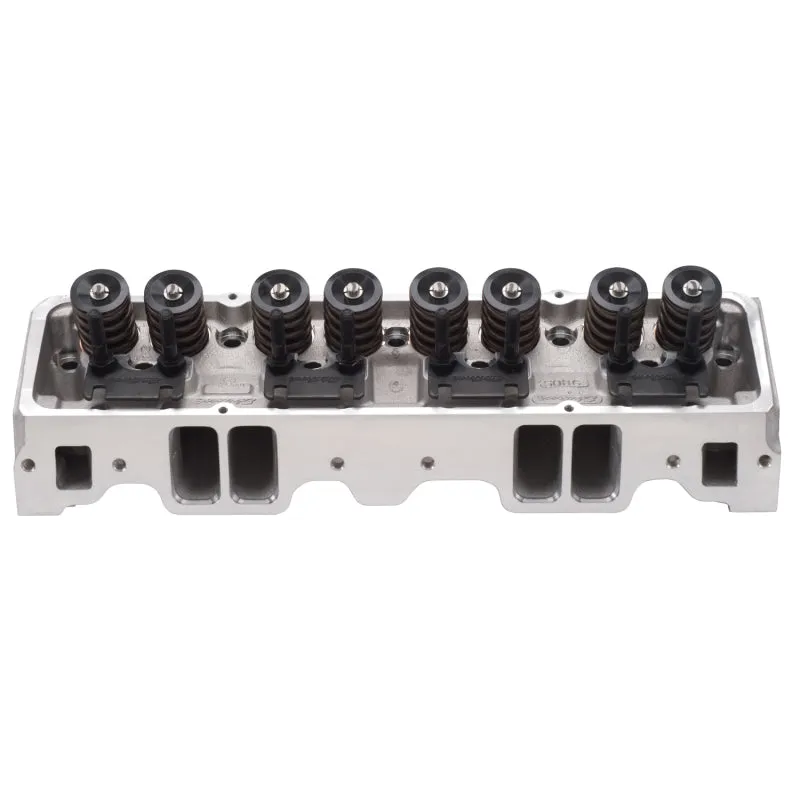

Cylinder Head Specifications: Combustion chamber volume: 64cc; Intake runner volume: 210cc; Exhaust runner volume: 75cc; Intake valve diameter: 2.08"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese Bronze; Deck thickness: 9/16"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"(5085) / .650"(5087); Rocker stud: 3/8"; Guideplate: Hardened steel; Pushrod diameter: 5/16"; Valve angle: 23 °; Exhaust port location: N/A; Spark plug fitment: 14mm x .750 reach, gasket seat * Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Edelbrock recommends Fel-Pro #1206 intake gaskets for use with E-210 cylinder heads.
Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.
Product Descripton:
